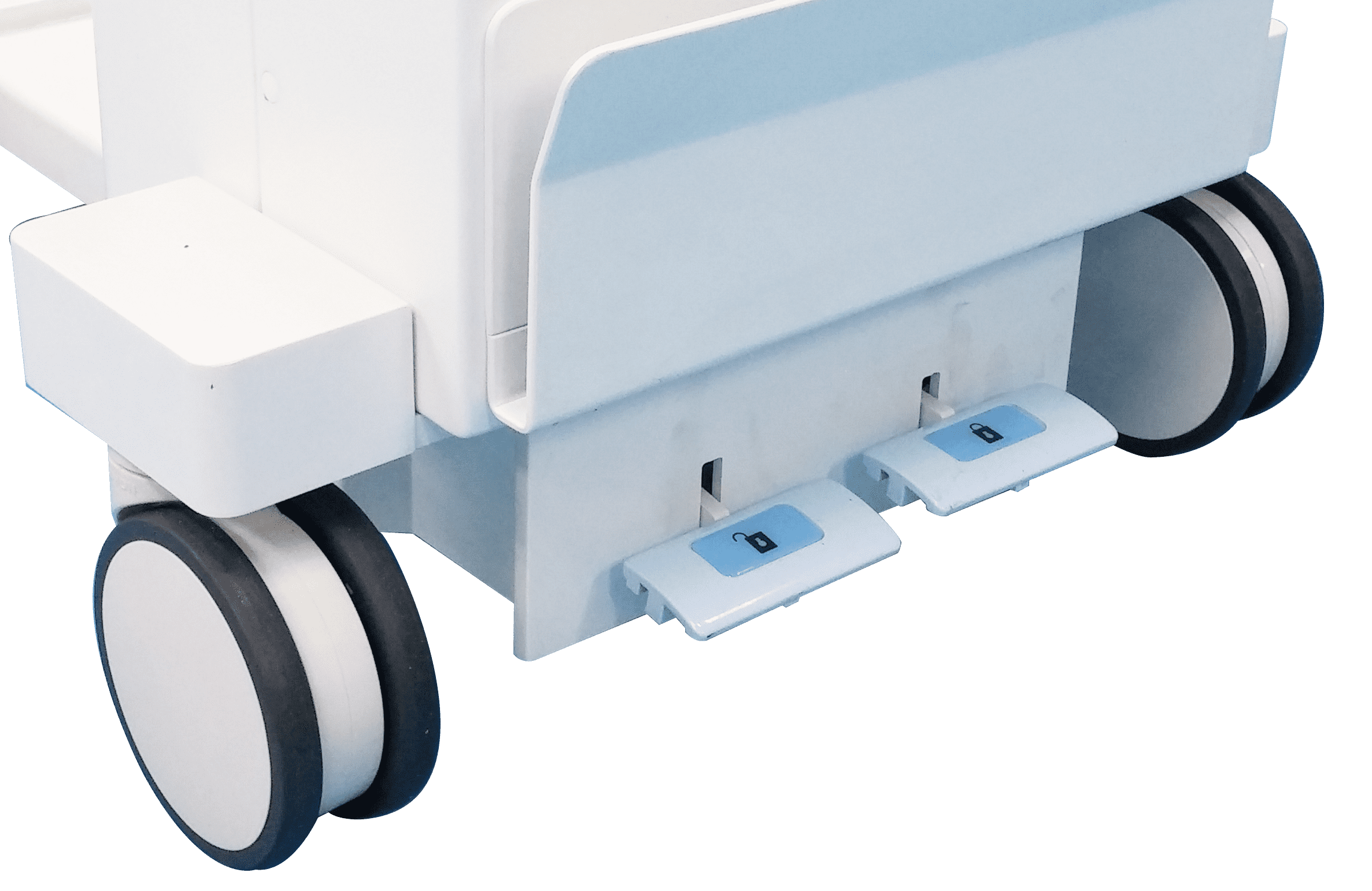

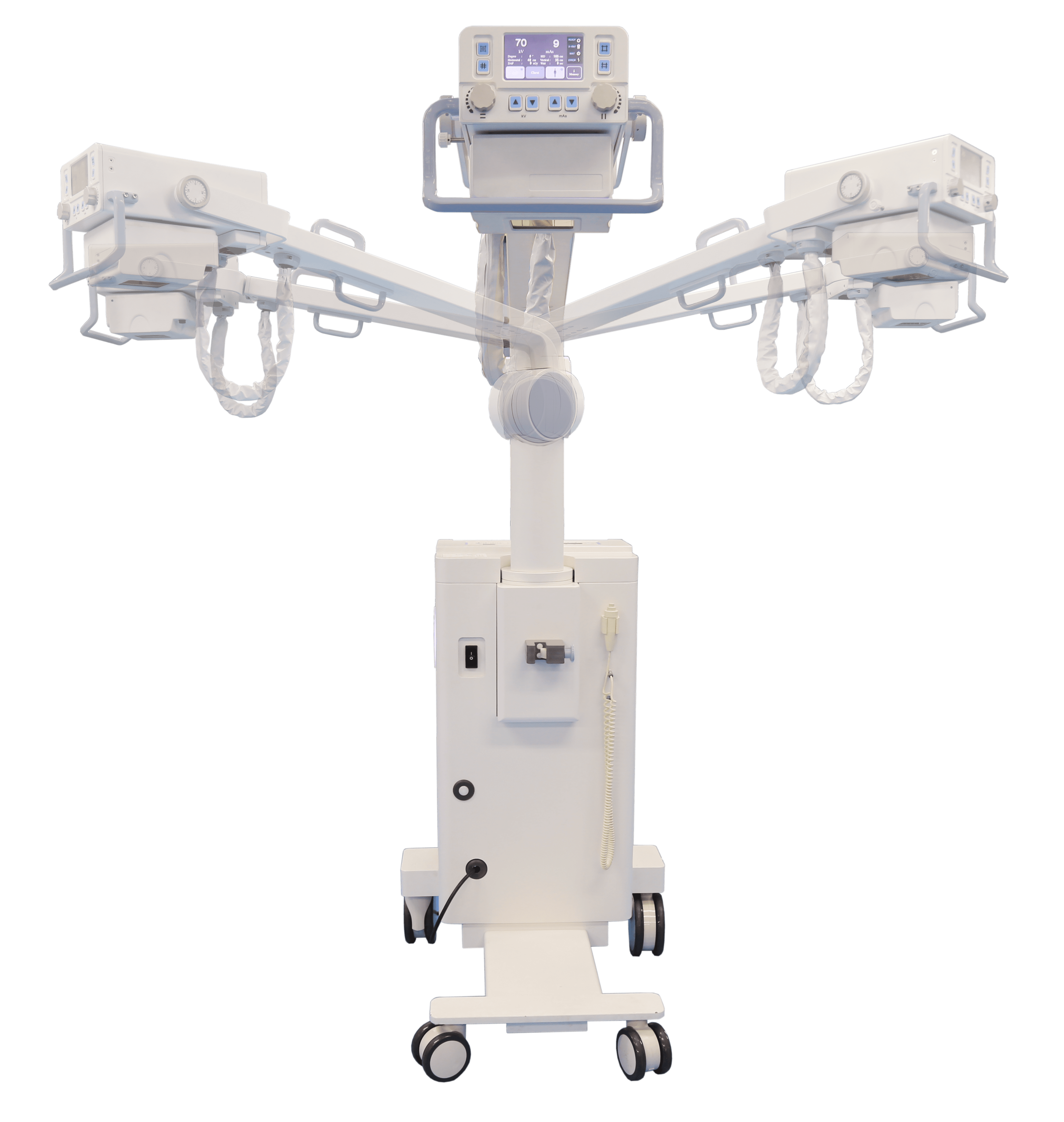

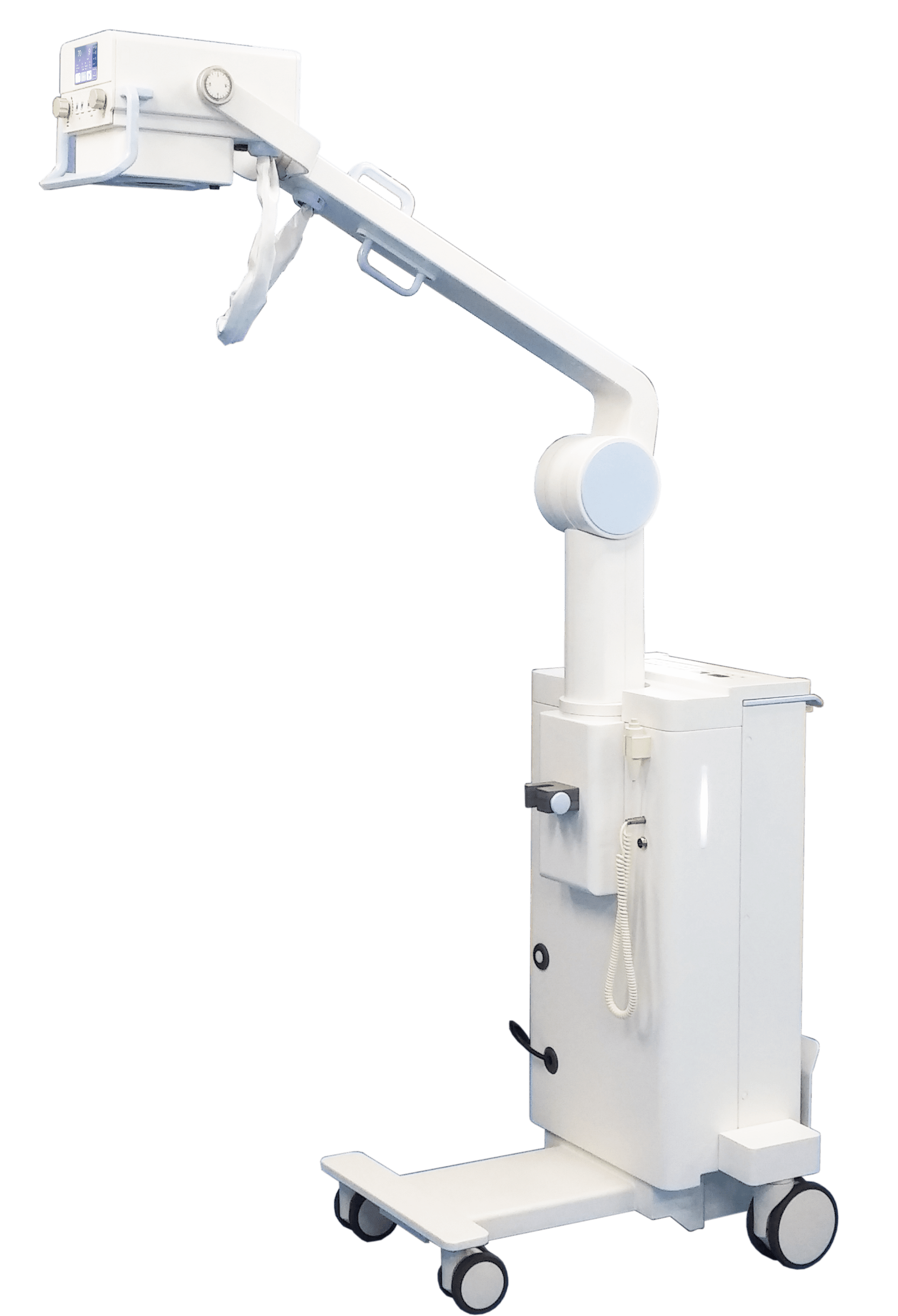

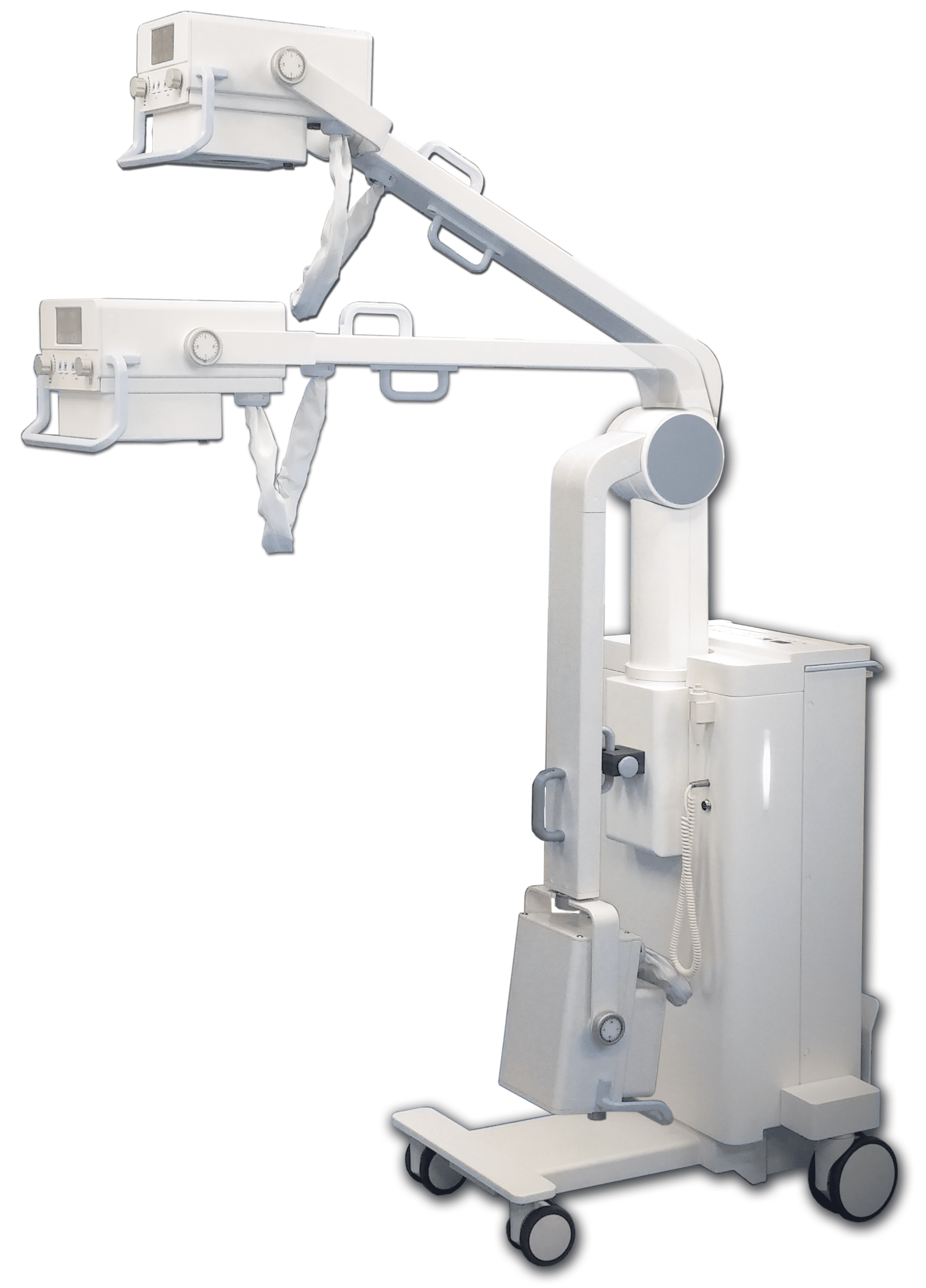

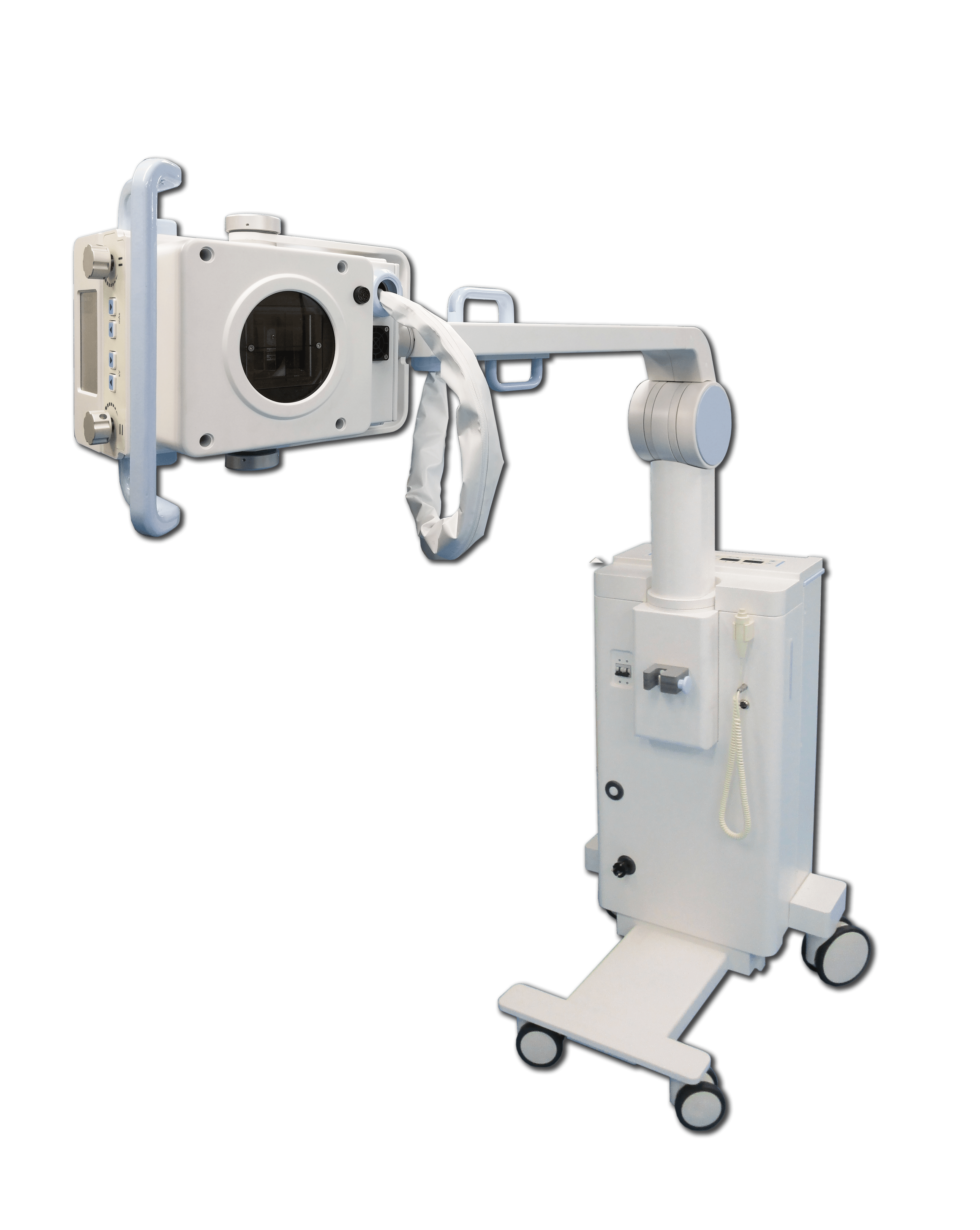

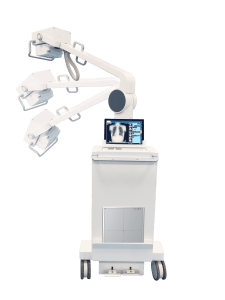

• BENEFIT. Ultra 200 / 200A is a mobile X-ray which it can be used in Hospital and Clinics(ICU, Patient room, or ER room, etc.) With its 360︒ Rotational Wheels, operator will easily move the unit. After reaching to a place where X-ray will be used, internal break structure has been applied for safety as it can cause risk of injuries for operating personnel, With 180︒ lateral arm movement, the operator can set any direction of desired position. After relocating the head part where X-ray shall be generated, free stop arm will stop by simply releasing. Any other extra lock is not required.

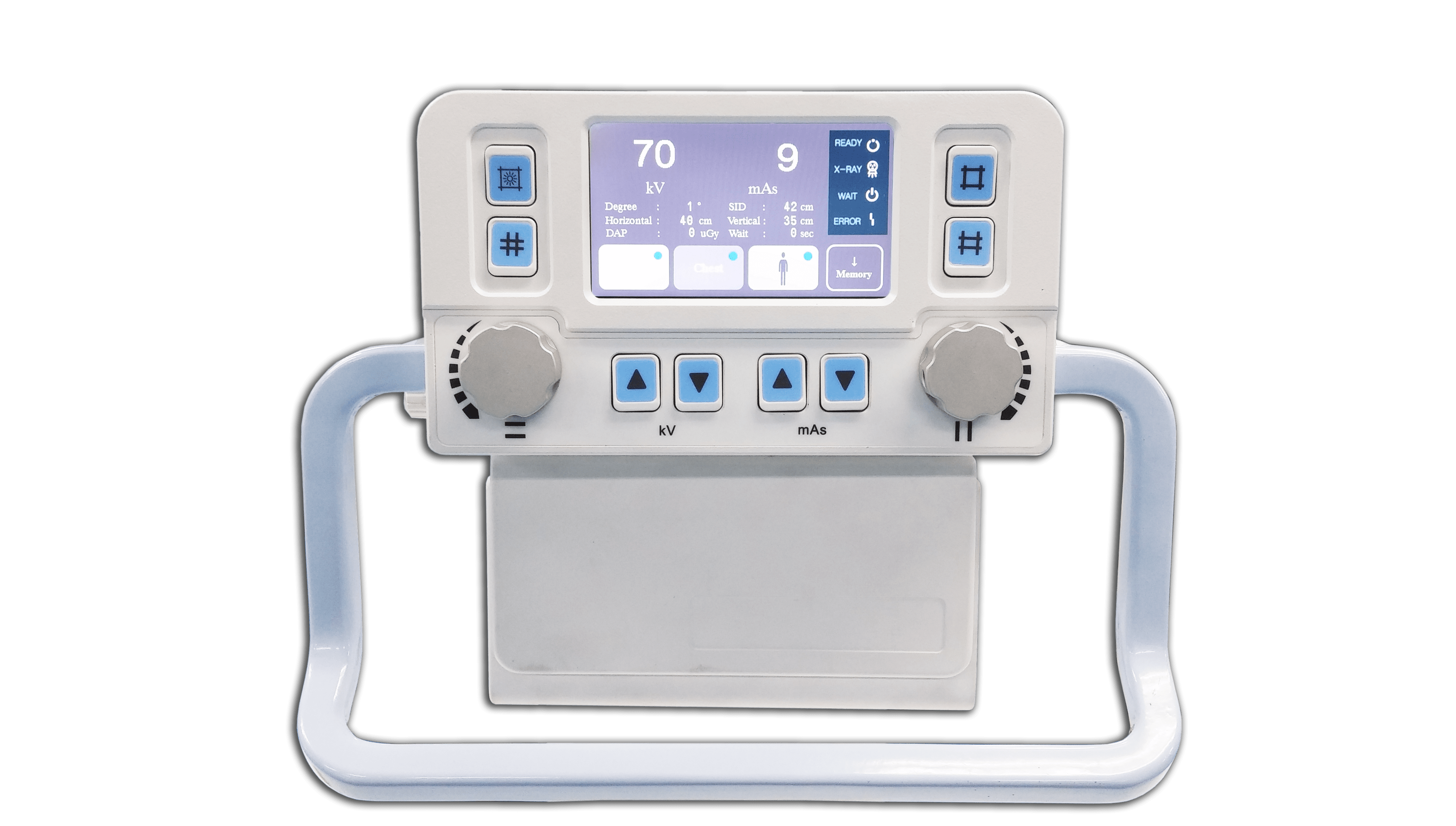

  • TOUCH LCD MONITOR. Overhead touch screen shows auto SID (ultrasonic sensor), APR, and various functions. You can adjust radiation parameters (kV, mAs) on the touch screen. Easy look and touch will make the functions ready to perform. Motorized collimator shuttering knobs are providing quick and accurate field of radiation change.

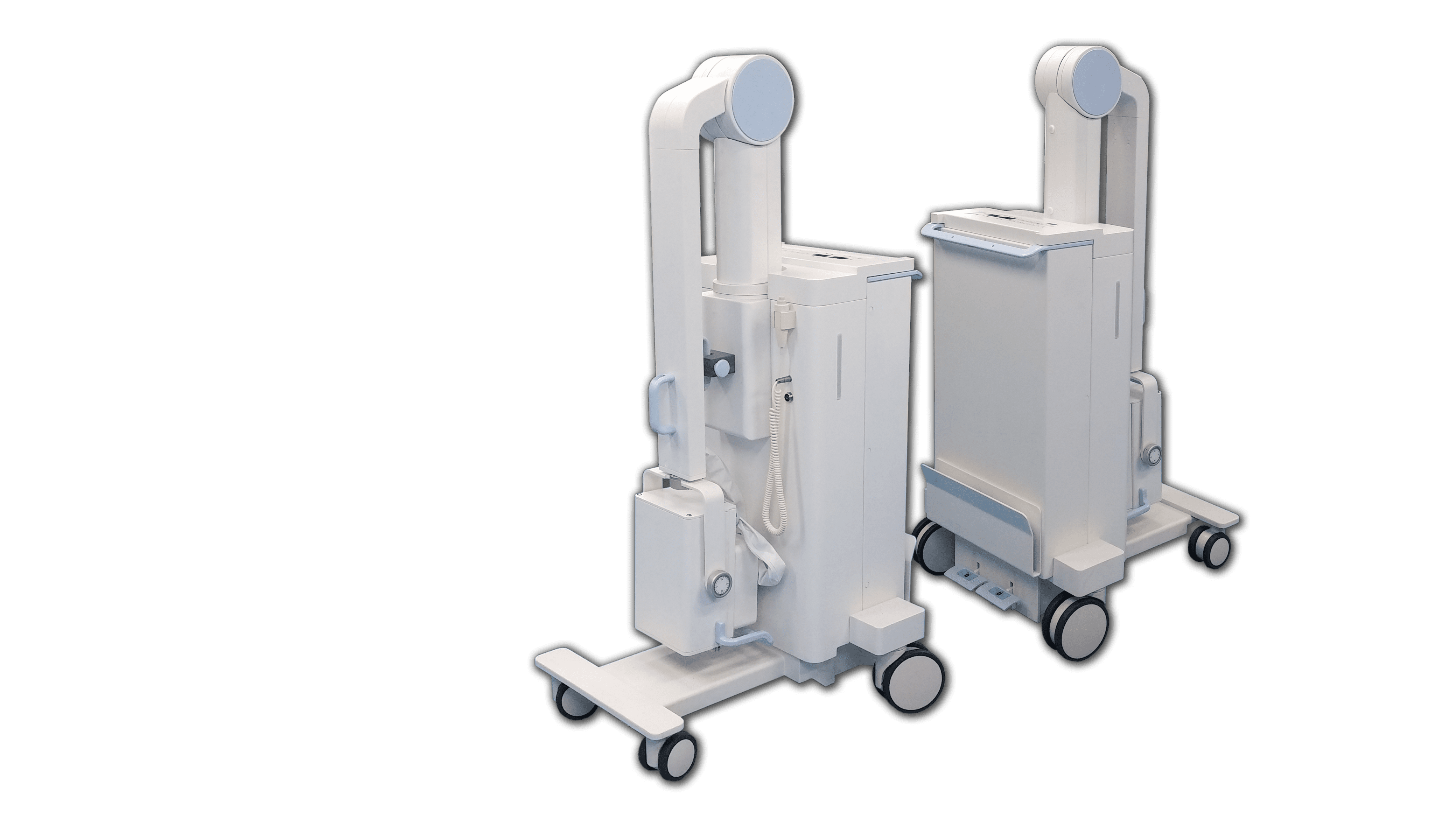

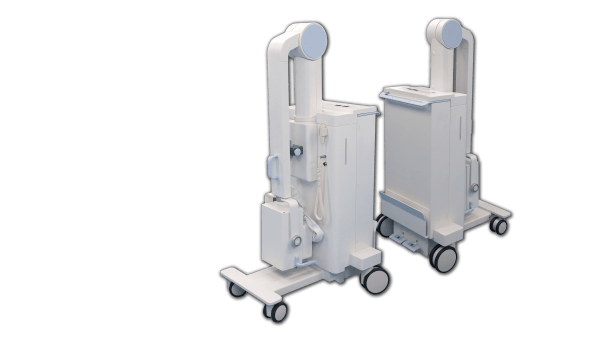

  • POWER SELECTION. Two Types of power are available. Ultra 200 : Rechargeable Battery-powered and Ultra 200A : AC Line Powered. Because of enough battery power, it’s able to operate without connecting to a room power supply. In case of lack of battery, it’s available to have normal performance with AC line.

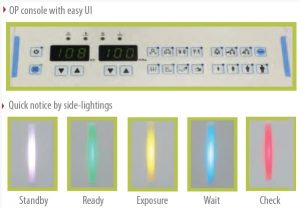

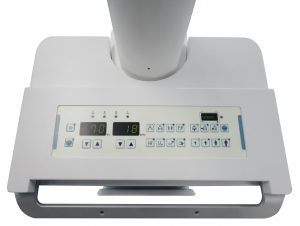

  • OP Console with easy UI
  • Quick notice by side-lighting

Please click the below button for download





Specifications Ultra 200 Ultra 200A
Input Power 100~240VAC (50/60Hz) 200~240VAC (50/60Hz)
Output Power 5kW Monobloc
kV Range 40 – 110kV (1kV Step)
mAs Range 0.32mAs – 200mAs
X-ray Tube Canon / DF-183
Focal Spot 1.8mm
Anode Heat Storage Capacity 28KJ
Maximum anode cooling rate 265W
LED Lamp More than 130 lux
Net Weight 197kg 166kg
Size (W x L x H) 634 x 810 x 1,546mm

5kW Mobile X-ray unit-Compact, Smooth and Powerful (110kV, 200mAs) ULTRA 200 / 200A will be an answer for your long-term question on portable X-ray. Get an ideal X-ray solution for your ER purposes as well as a secondary mobile choice
