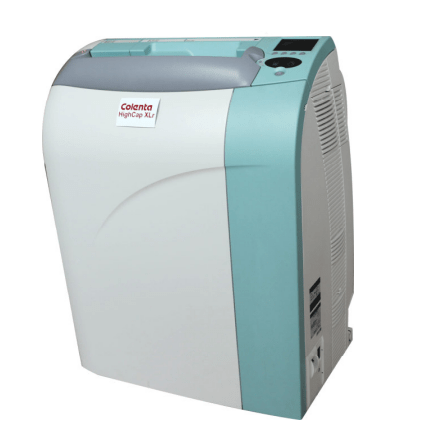

DX Easy Imaging CR Retrofit Kit HighCap XLr

DX Easy Imaging CR Retrofit Kit HighCap XLr

Processing Capacity
Up to 87 IPs/hr in size 14“x17“ (35cmx43cm)
Capable of automatically starting the IP reading, when the IP
cassette is inserted, the system is designed to complete the IP
reading cycle with simple operations.

Reading Resolution – Pixel Size
Up to 508dpi (50μm) – it allows the reading of Mammographic Images*
One of the reader’s key component is the Imaging Plate, or IP, which is used instead of the X-ray film to easily digitize the X-ray images.

Three types of IP cassettes can cover various imaging such as chest, lumbar spine, pantomography (15cm x 30cm), and extremities. Virtually, all imaging requirements can be satisfied with a single unit.

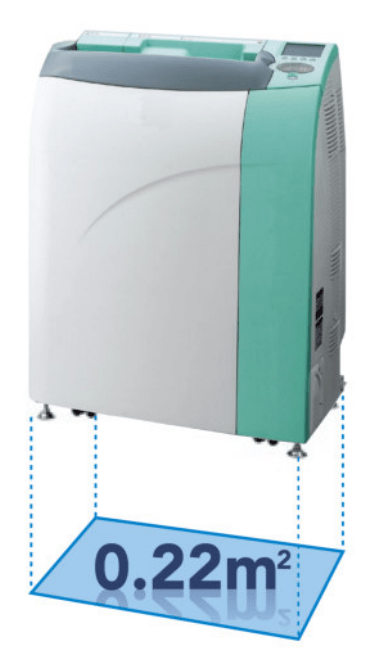

Compact with High Efficiency
The Colenta DX Easy Imaging CR Retrofit Kit HighCap XLr enables extremely high throughput of up to approximately 94 IPs/hr **. As all the Colenta equipment the Colenta DX Easy Imaging CR Retrofit Kit HighCap XLr is easy to operate. It will help to reduce patient waiting time and to greatly increase the efficiency of examination workflow.
**) IP size 14”x14” (35cm x 35cm), reading at 5 pixels/mm

**)Minimum requirement of PC is Core i5 processor with 3.2 GHz clock speed & 4GB RAM. 2 x 500 GB SATA Harddisk & RAID supported motherboard are required. 2 x GBit LAN Controller and VGA graphic
controller with 24bit color depth

Description

SPECIFICATIONS

Image Plate General X-ray 14” x 17” (35cm x 43 cm), 14” x 14” (35cm x 35 cm),

10” x 12” (24cm x 30cm), 8” x 10” (18cm x 24cm), 15cm x 30cm

Image Plate Mammography 10” x 12” (24cm x 30cm), 8” x 10” (18cm x 24cm)
Processing Capacity 14” x 17” (35cm x 43 cm) up to 87 IPs/hr

8” x 10” (18cm x 24cm) up to 92 IPs/hr

Time Required for IP Feed/Load Min. 38 sec
Grayscale resolution 12 Bit
Reading Specification 20 pixel/mm, 10 pixel/mm, 5 pixel/mm
Pixel Size 100um, 50 um (mod. XMr)
Number of Stacker 1
Network 10 Base T/100 Base TX
Weight 99 kg (218 lbs.)

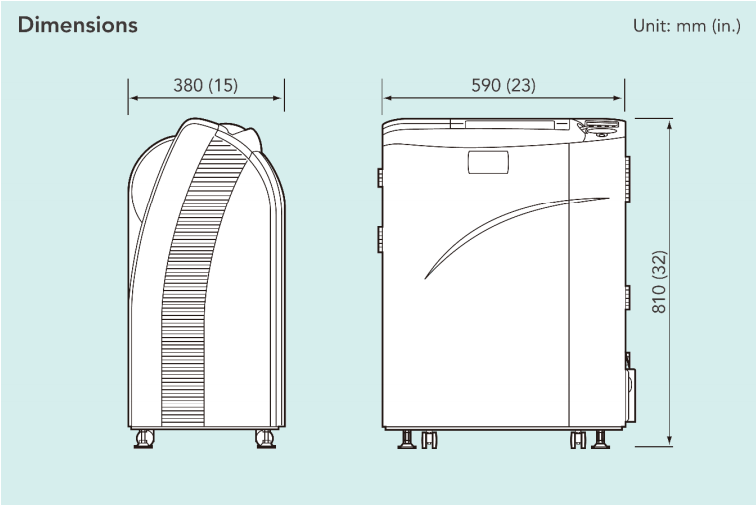

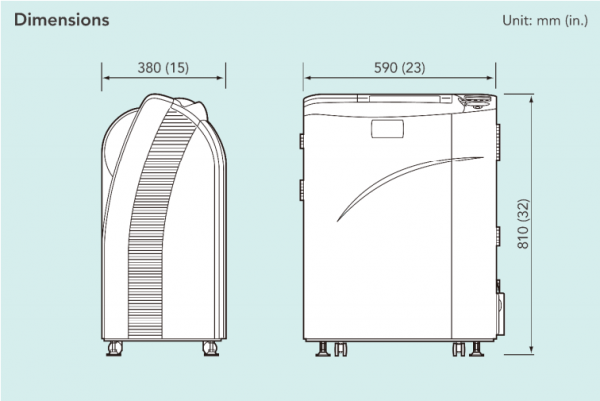

Dimensions (WxDxH) 590mm x 380mm x 810 mm (23” x 15” x 32”)
Power Supply Conditions Single phase 50-60Hz, AC120-240V±10%
Environmental Conditions Temperature: 15-30°C

Humidity: 40-80%RH (No dew condensation)

Specifications are subject to change without notice. All brand names or trademarks are the property of their respective owners. In some countries, regulatory approval may be required to import medical devices.



For more information :

Brochure: Leaflet Colenta DX Easy Imaging CR Retrofit Kit HighCap XLr
