DX Easy Imaging CR Retrofit Kit HighCap Xr

DX Easy Imaging CR Retrofit Kit HighCap Xr

Processing Capacity

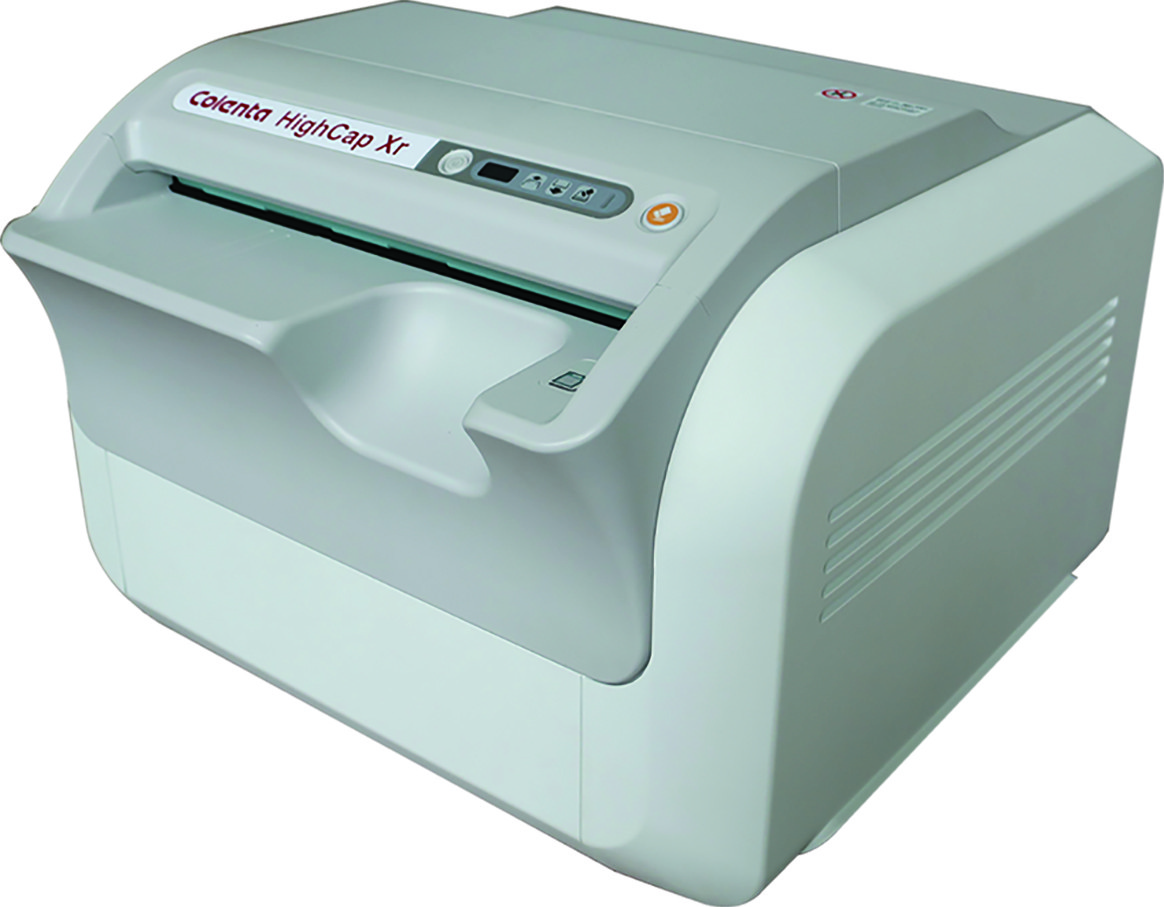

Up to 47 IPs/hr in size 14“x17“ (35cmx43cm). The Colenta DX Easy Imaging CR Retrofit Kit HighCap Xr is a table-top Reader unit which boasts a world-class high processing speed of 73 IPs/hour*. As with all Colenta equipment the DX Easy Imaging CR Retrofit Kit HighCap Xr is easy to operate. It will help to reduce patient waiting time and greatly increase the efficiency of examination workflow.

*) The above value is for IPs of 8” x 10” (18cmx24cm)

Reading Resolution – Pixel Size

One of the reader’s key components is the Imaging Plate, or IP, which is used instead of the X-ray film to easily digitize X-ray images.

Space-Saving Design

As all the Colenta equipment the Colenta DX Easy Imaging CR Retrofit Kit HighCap Xr is easy to operate. It will help to reduce patient waiting time and to greatly increase the efficiency of examination workflow.

Minimum requirement of PC is Core i5 processor with 3.2 GHz clock speed & 4GB RAM. 2 x 500 GB SATA Harddisk & RAID supported motherboard are required. 2 x GBit LAN Controller and VGA graphic controller with 24bit color depth.

Description

Specifications

Image Plate General X-ray 14” x 17” (35cm x 43 cm), 14” x 14” (35cm x 35 cm),

10” x 12” (24cm x 30cm), 8” x 10” (18cm x 24cm), 15cm x 30cm

Processing Capacity 14” x 17” (35cm x 43 cm) up to 47 IPs/hr

8” x 10” (18cm x 24cm) up to 73 IPs/hr

Time Required for IP Feed/Load Min. 49 sec
Time to Start on Display Min. 33 sec.
Grayscale resolution 12 Bit
Reading Specification 5 pixel/mm, 10 pixel/mm, 20 pixel/mm (Mod. XMr)
Pixel Size 100um, 50 um (mod. XMr)
Number of Stacker 1
Network 10 Base T/100 Base TX
Weight 39 kg (86 lbs.)

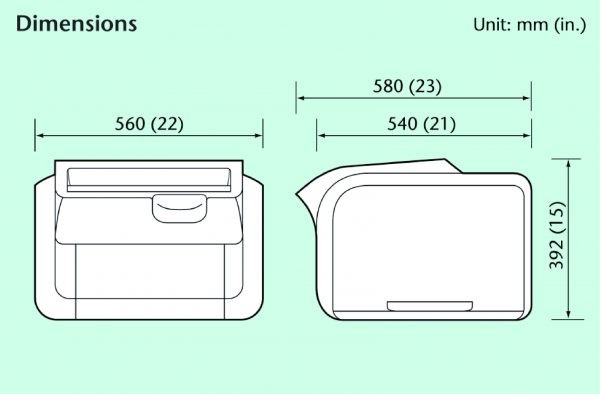

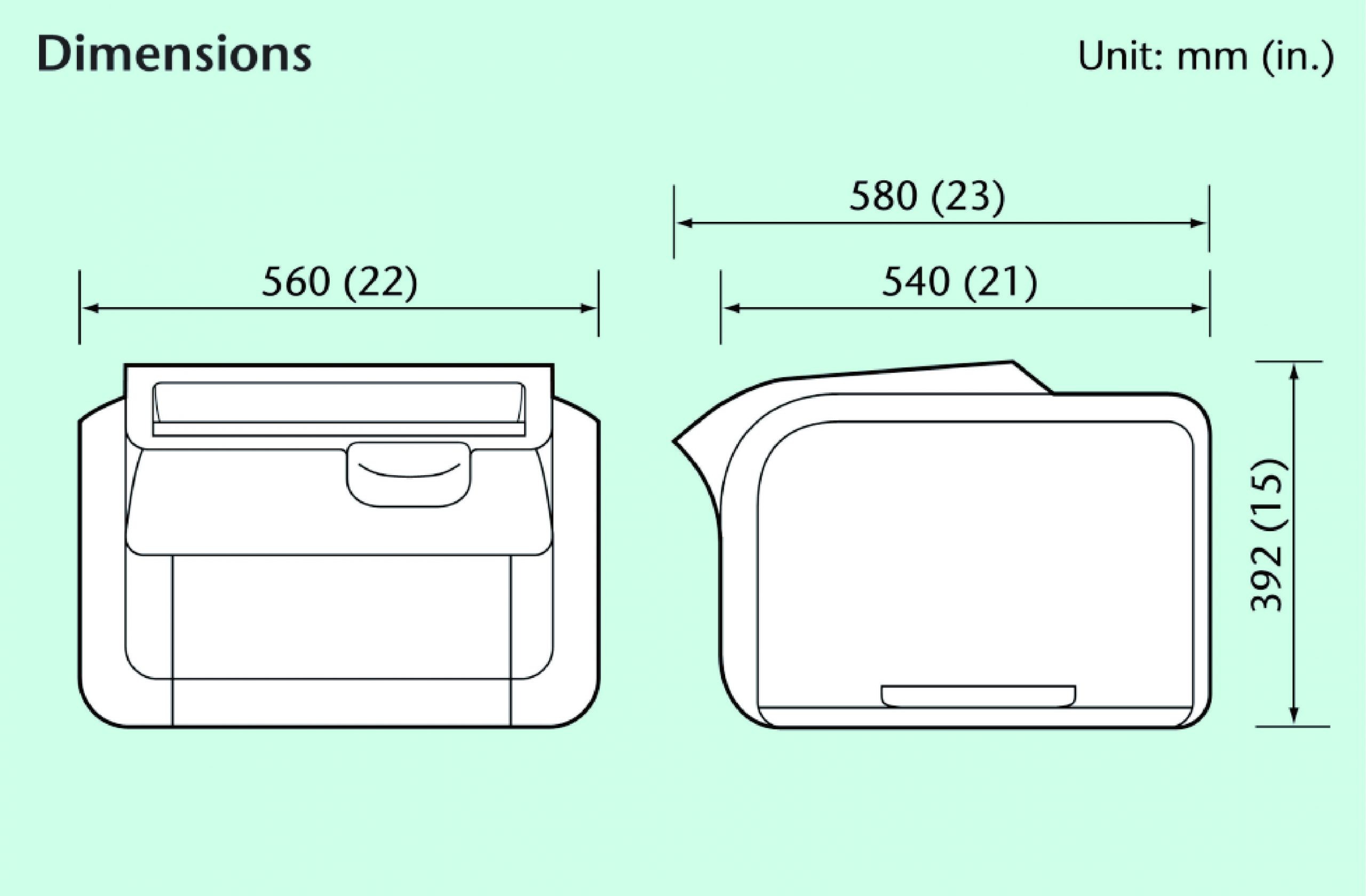

Dimensions (WxDxH) 560mm x 540mm x 392 mm (22” x 21” x 15”)
Power Supply Conditions Single phase 50-60Hz, AC120-240V±10%
Environmental Conditions Temperature: 15-30°C

Humidity: 40-80%RH (No dew condensation)

This equipment is a Class 1 laser product (IEC60825-1:2001).

Specifications are subject to change without notice. All brand names or trademarks are the property of their
respective owners. In some countries, regulatory approval may be required to import medical devices.
