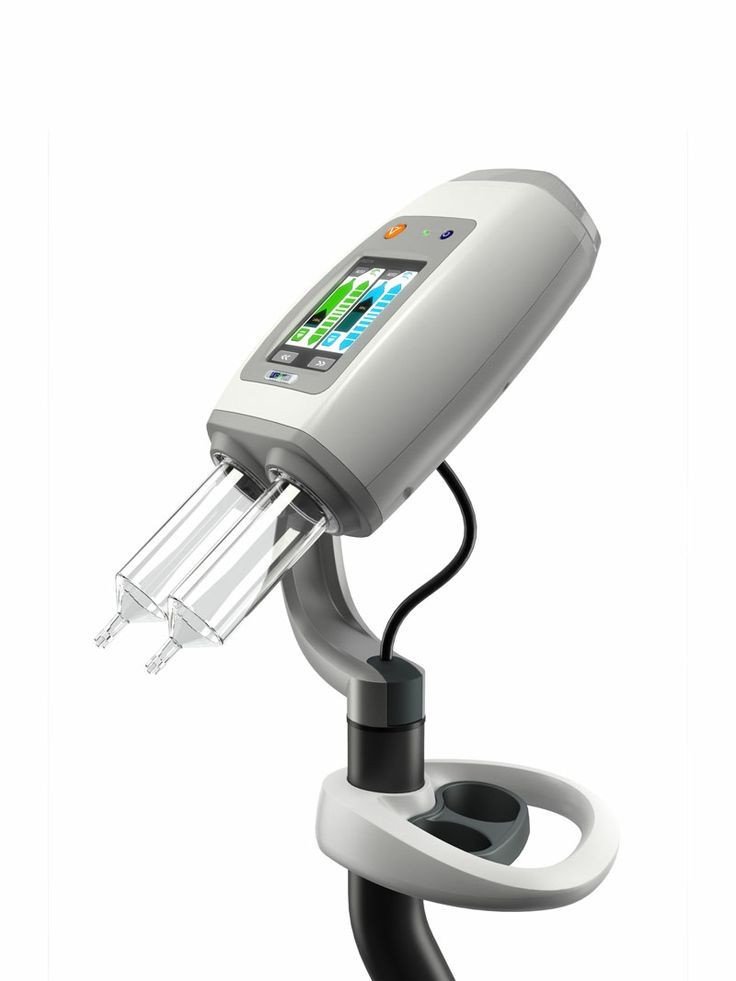

SALIENT DUAL

SALIENT DUAL

Specification:

  • Dual action loading, for maximum ease of use

Functional

  • Maximum pressure : 300 psi
  • Flow Rate : 0.1 to 10 ml/s;
  • Maximum volume : 190 ml
  • Multi-phase protocols:
  • Up to four phases
  • storage for 20 different named protocols
  • Manual fill rate : Up to 10 ml/s
  • Auto fill rate : Up to 10 ml/s

Controls

  • Base : Line power, IEC Inlet, On/off switch
  • Head : 5.7” LCD touch screen, Arm button, On/off soft switch

Mechanical

  • Height : 1200 mm
  • Floor area : 500 mm x 500 mm
  • No. of wheels : 4 castors, all individually  locking

Electrical

  • Line voltage : 100 – 230 VAC, 50/60 Hz
  • Battery operation : Dual batteries, sealed lead acid
  • Main power operation : Simultaneous operation and battery charging
  • Contrast heat maintainer (optional) : 37°C+/- 2°C, 5W

Consist of:

  • Dual syringe Contrast Injector, CT Salient Dual, Imaxeon;
  • Extension tube for syringe
  • Syringe for Salient;- Heat Maintainer

Controls:
Base     : line power, IEC Inlet, On / Off switch
Head    : 5.7” LCD touch screen, Arm button, On / Off switch

Categories: ,

Description

Kategori : CT Injection System ( Dual Syringe)
Merk :Imaxeon
Type: Salient Dual

DESCRIPTION:
The SALIENT™ Contrast injection system has, like all Imaxeon products, been engineered to deliver safety, reliability and performance with superior lifetime value.

Features:
USER FRIENDLY INTERFACE

  • Intuitive icon-driven user touch screen
  • Easy contrast loading
  • On-line or off-line syringe filling

COMPLETE RANGE OF CONSUMABLES

  • Coiled extension tube for safety and convenience
  • Completely transparent syringe with fill tube included
  • FluiDots® show whether syringe is filled at a glance

POWERFUL INFRARED REMOTE

  • Injector can be operated safely from the control room
  • Proven reliability in over 1000 worldwide sites
  • Simple inject and stop functions

SINGLE ACTION SYRINGE LOADING

  • Single action loading, for maximum ease of use
  • Syringe is simply pushed into bayonet and rotated 90

OFF LINE FILLING SYSTEM

  • Saves valuable scan room time
  • Enables syringe pre-filling
  • Flexible filling volume
